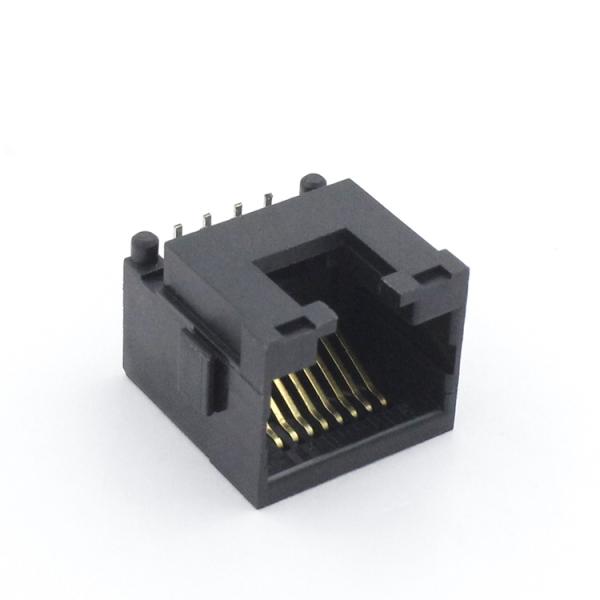

Black Metal RJ45 Modular Connector Without Shiled And Leds TM58D811SXX47

Brand Name : TM

Model Number : TM58D811SXX47

Certification : UL,Rohs,Reach,ISO9001

Place of Origin : Guangdong of China

MOQ : 500/1000/2000 pcs

Price : Supportive

Payment Terms : T/T, Western Union, ,Paypal

Supply Ability : 500K/year

Delivery Time : 15 Days

Packaging Details : 250pcs/tray,5000pcs/carton

Product Type : RJ45 Modular Connector

Jack Type : RJ45

Number of Positions : 8

Terminals per Port : 8

LED Option : NO

Shielded EMI Tabs : NO

Voltage rating : 125 V

Current rating : 1.5 A

Contact resistance : 30mΩ

Insulation resistance : 500 MΩ MIN @ 500V DC

Dielectric resistance : 1000V AC RMS 50Hz. 1MIN

Durrability : 750 CYCLES MIN

Minimal Order : 5000pcs

Package : 250pcs/tray,5000pcs/carton

Contact Now

metal RJ45 Modular Connector without shiled and Leds TM58D811SXX47

Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.3mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: NO Shield
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:
RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Latch Down
Connector Length: 14.25 mm
Connector Width: 13.50 mm
Connector Height: 10.9 mm
Termimal Solder Pin Length: 3.3 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ45 Without Transformer (TM58D811SXX47) Attributes:

Model:	TM58D811SXX47
Place of Origin:	Guangdong of China
Certification:	UL,Rohs,Reach,ISO9001
Product Type :	RJ45 Modular Connector
Jack Type:	RJ45
Number of Positions :	8
Terminals per Port:	8
LED Option:	No
Shielded EMI Tabs:	No
Voltage rating:	125 V
Current rating:	1.5 A
Contact resistance:	30mΩ
Insulation resistance:	500 MΩ MIN @ 500V DC
Dielectric resistance:	1000V AC RMS 50Hz. 1MIN
Durrability:	750 CYCLES MIN
Minimal Order:	5000pcs
Package:	250pcs/tray,5000pcs/carton
Carton size:	*343427cm*
Delivery Time:	20 Days
Supply Ability:	5KK/year

RJ45 Female Connector (TM58D811SXX47) Mechnical Drawing:
